Daimler CHEC Application

ACTIONABLE METRICS: INCREASE USER AWARENESS AND DEPENDENCY TO THE CHEC APPLICATION WHICH WILL ALLOW ELECTRICAL ENGINEERS TO PROGRAM SEMI-TRAILER TRUCKS ECUS TO DASHBOARD SWITCHES AND GAUGES.

STRUGGLES / SOLUTION

STRUGGLES: The CHEC application is very complicated and needs simplification and refining.

SOLUTION: Meet with users and experts to simplify patterns and flows.

CHEC FEATURES:

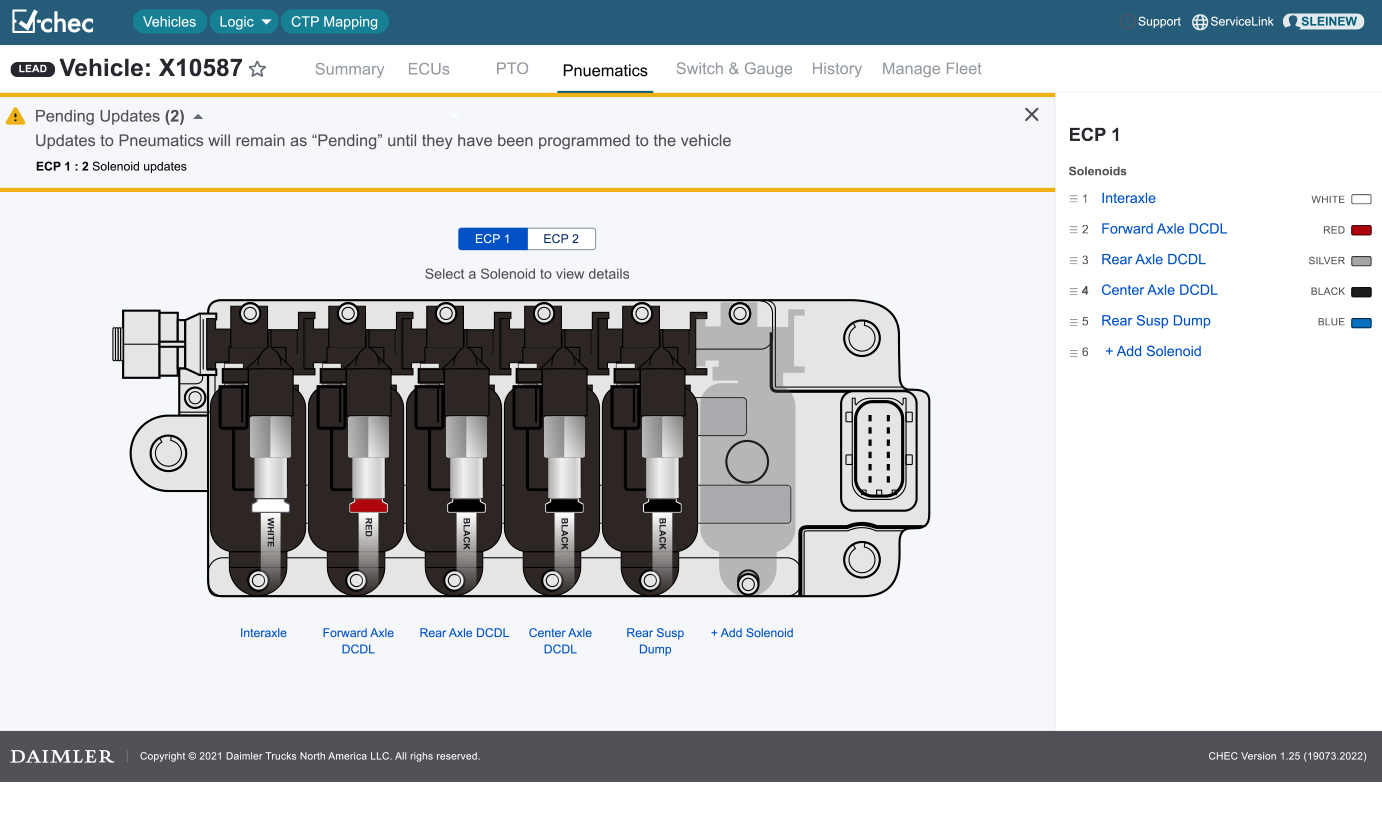

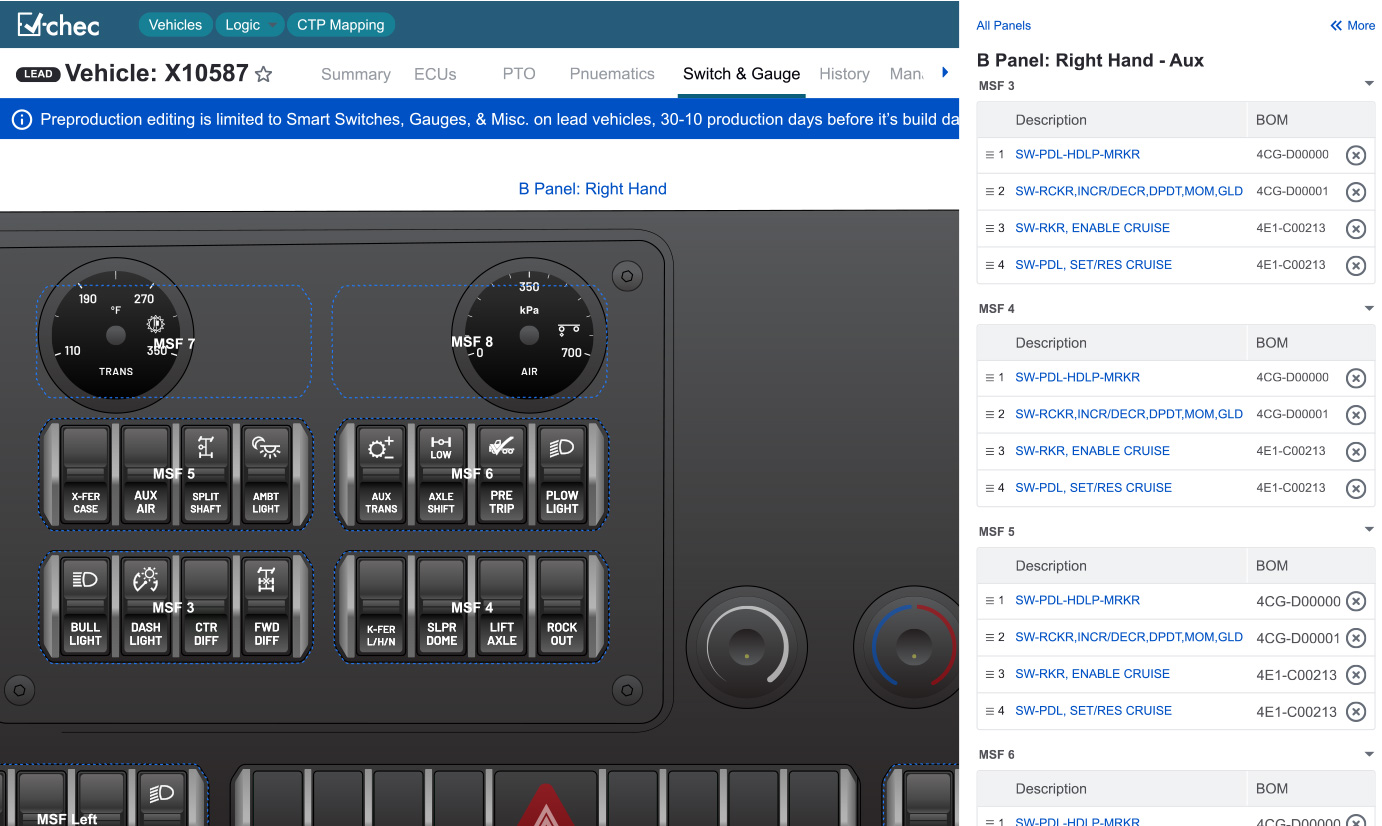

  • Vehicle Management

  • Vehicle Info

  • Vehicle Configuration

  • Logic

UX Research

I utilize workshops with external and internal users to gain direction and insight on the user. This system allows me to see a more rounded approach to optimizing and updating areas of struggle.

External User Insights

I present and review zoom workshops to external users to gain insights on new features, and gain knowledge on struggles and solutions

Internal User Insights

Weekly meetings with internal users that utilize our software daily.

Merged Insights

Merging external and internal user insights helps me to understand this complicated pattern and flow.

Persona

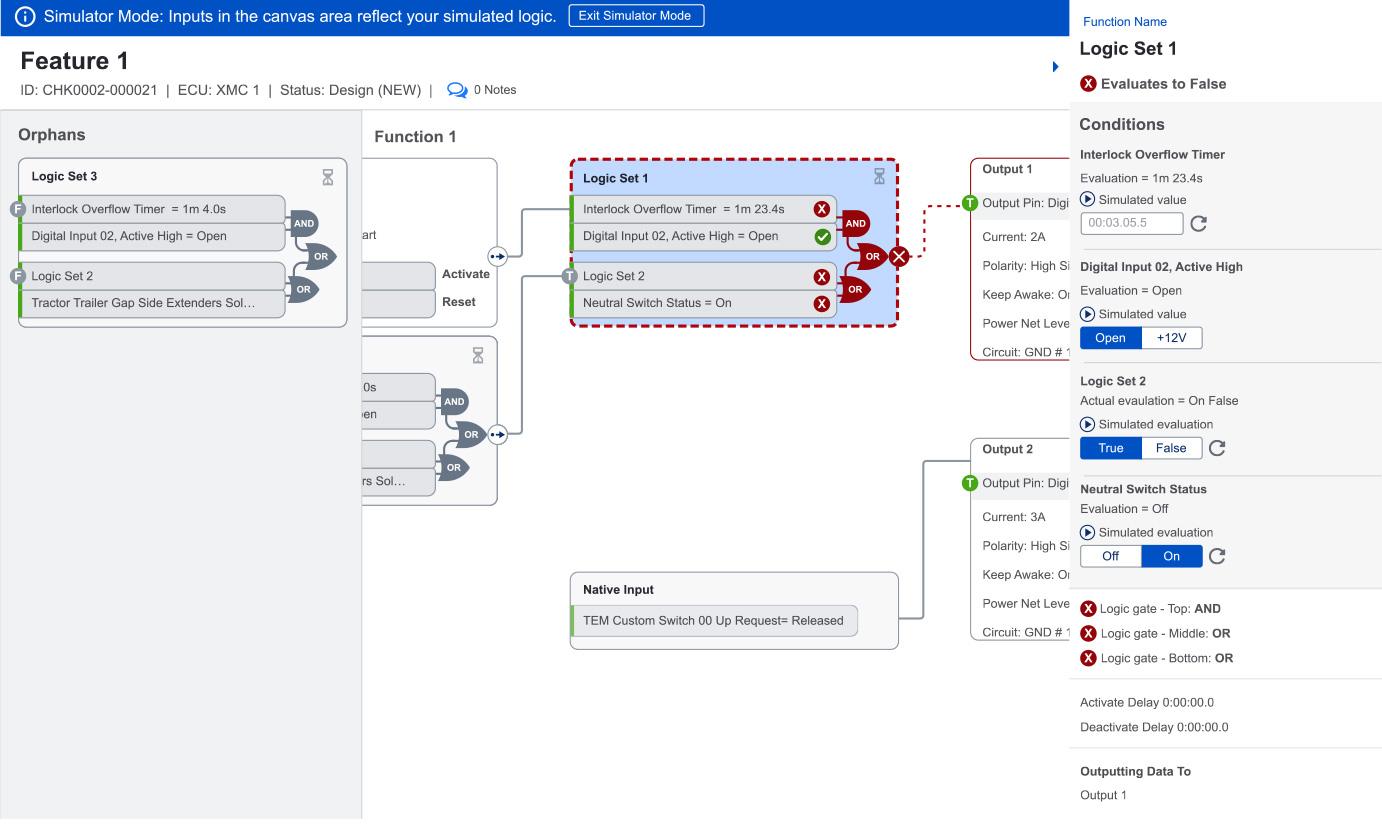

This persona Earl was based off users needing a programming tool that would help them simulate logical programming. After many workshops we were asked to develop a way to simulate logic in the CHEC app to increase production and safety.

In the past this logic took 6 months to program, now it only takes a week since the internal engineer can build their own logic.

Product Backlog Item Example

This PBI will be presented from a Figma file per your request.

Description

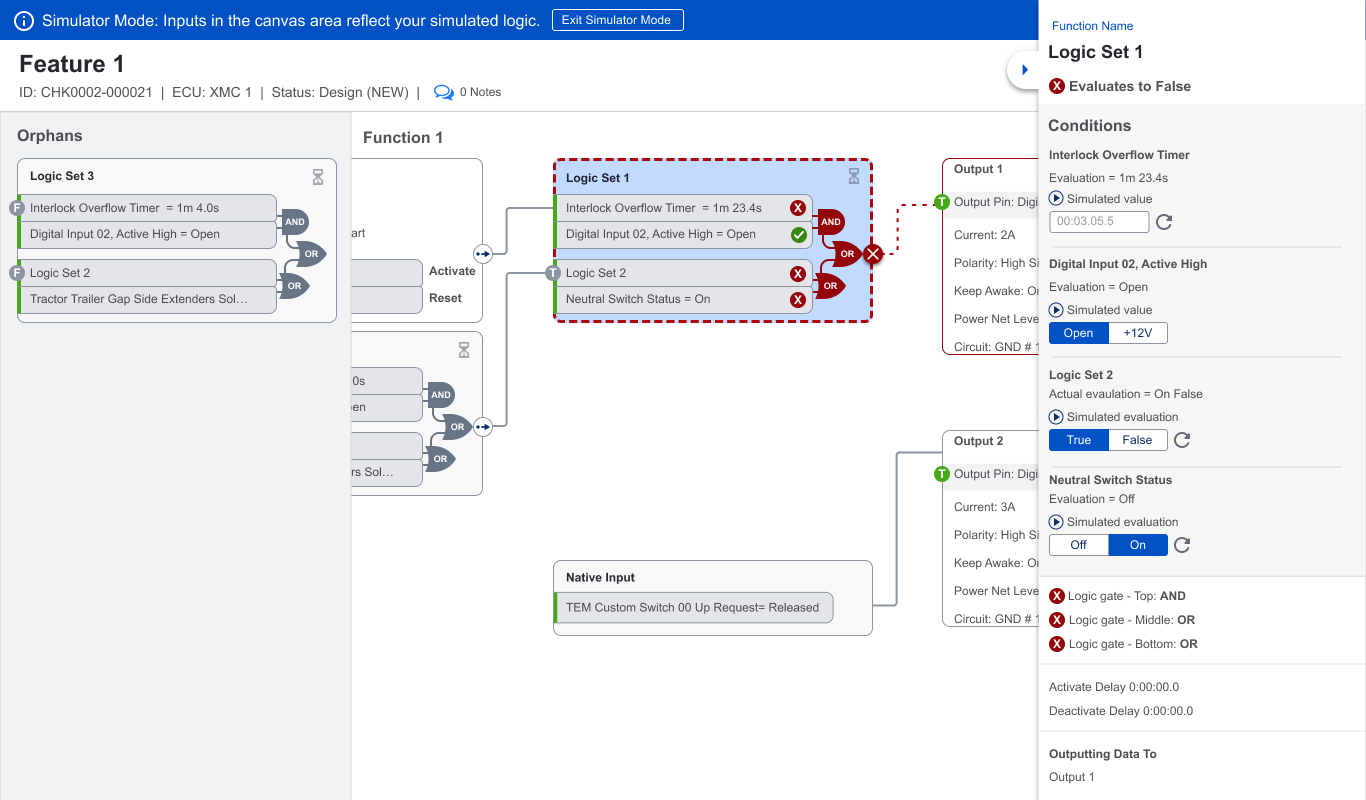

As a CHEC+ user, I need to simulate the behavior of outputs, particularly those controlled by single inputs or conditions. This will allow me to validate the behavior of my logic.

Acceptance Criteria

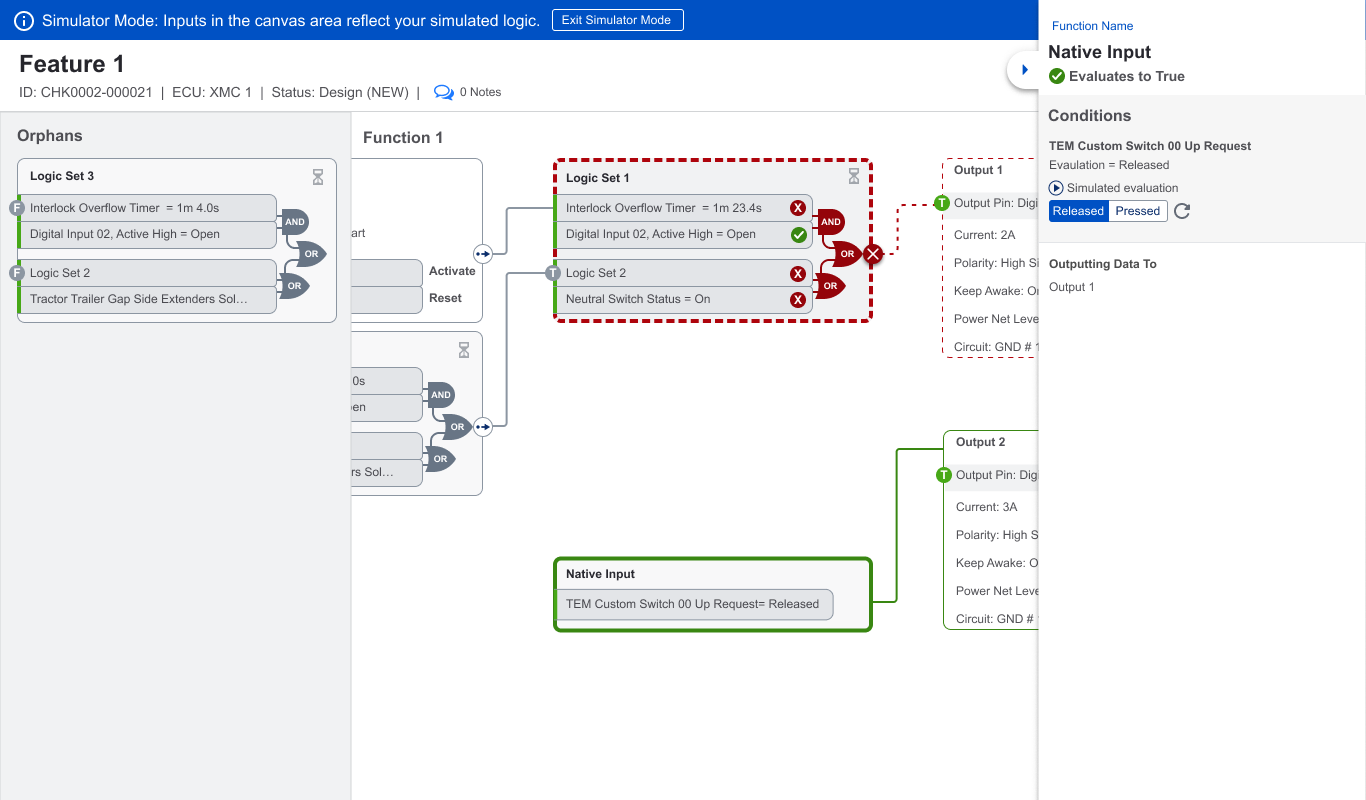

  • Existing C+ simulation area expanded to enable CHEC+ TDEA user to:

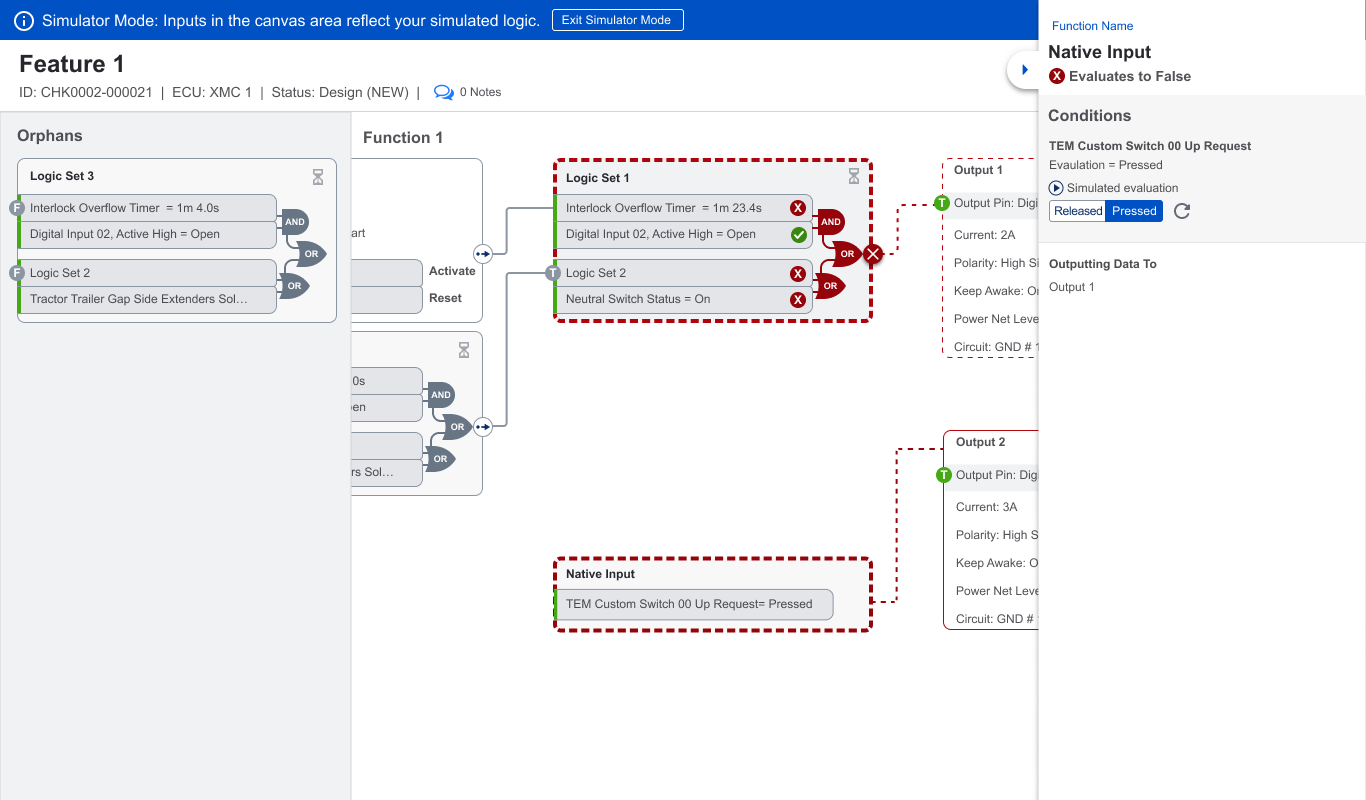

  • Clearly understand if an output is on, off, or in another state.
  • Include service outputs.
  • Support Single inputs
  • Support single conditions
  • This includes output condition carried from a timer.

Design System

I created a design library which supports visual and interaction design in Figma. This library is an hybrid based on icons from Google Material and engineering known artifacts.

Deliverables

I supported the engineering and product owners with observational insights, wireframes, mockups, prototypes, branding, and design assets.

  • Gathered insight from users

  • Created diagrams, wireframes, prototypes and mockups

  • Branded & designed all content

UX Research
Interaction Design
Visual Design

Results

Users were very content with the ability to program and control their own logic. This simulation feature increased their ability to build, support, and produce more semi-trailer truck vehicles.
